4-Scan Image Tracing

4-Scan is simple tool to trace raster images. The image tracing is fast and easy to handle.
Because of using large arcs instead of polygon lines, the DXF output is perfect for sheet metal parts.
Using 2 different image tracing algorithms, one for simple images and one with advanced parameters for more complex jobs, 4-Scan generates the best results.
Just switch thru the presets and compare the traced path wit the original image.

See the examples below:

Emblem:

Original Image

Check the result as a filled image:

Result as a filled image

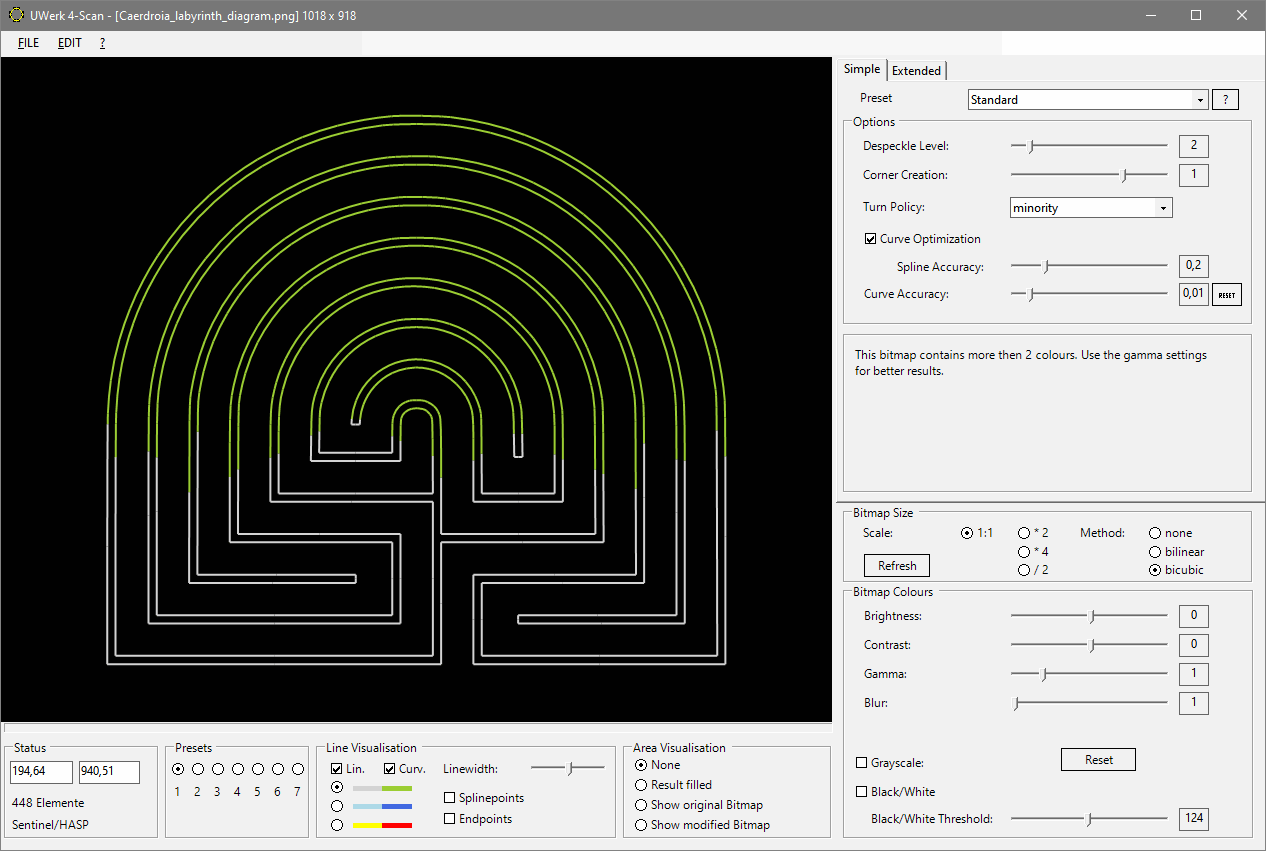

or switch to the line mode to see the laser path:

Result in Line-mode. Arcs in green, straight lines in white.
Detailed view of the result

Colored Photo:

Functions for reducing the color depth or to smoothen the contour are included

Image source: Pixabay
Image source: Pixabay
Image source: Pixabay

Center Line:

Image source: Pixabay
Image source: Pixabay

Centerline Tracing:

Image source: Pixabay

How to trace sheet metal parts
How to trace colored parts
